- Guaranteed Secure Payments on Every Order
- Refund if your item is not delivered or as described
- Buyer Protection after order confirmation
- Size: 1
- Place of Origin: shandong
- Brand Name: HF

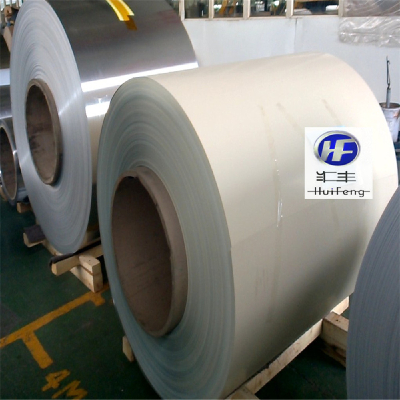

- Model Number: 0.2mm 3004 H46 color coated aluminum coil
- Weight: 1.000 kg
Quick Details
- Place of Origin: Shandong, China (Mainland)
- Brand Name: HF
- Model Number: 1050/1060/1100/3003/5052
- Application: building
- Thickness: 0.2mm-2.0mm
- Width: 1240mm
- Alloy Or Not: Is Alloy
- Grade: 3000 Series
- Surface Treatment: Coated
- Temper: O - H112
- PAINT: PVDF PE
- Alloy: 3004
Packaging & Delivery
| Packaging Details: | EXPORT STANDARD WOODEN PALLET |
|---|---|
| Delivery Detail: | 35DAYS |
"Jinan Huifeng aluminium Co., LTD", established from the year 2006, is a newly aluminum processing production enterprise, restructured from state-run enterprise , located in China's" Rose Town "—PingYing county of Jinan city territory.
PVDF color pre coated aluminum coils/ sheets:
It is well known that fluorocarbon lacquer coating (PVDF coating) owes the best acid resistant/alkali and temperature tolerant capabilities of all painting materials. Being the best quality of precoated aluminum, PVDF coated coils are especially suitable for outdoor roofing walls and ceiling manufacturing.
Polyester (PE) color pre coated aluminum coils/ sheets :
Using high-grade polyester lacquer coating material, the finished coated coils are with delicate color uniform texture, color and diverse. It is the most popular and most common used materials in decorative usage. The PE coated aluminum are widely used in ACP( aluminum composite panel ) production and indoor ceiling usage.
Products introduction
Products | Surface treatment | Thickness range | Width range | Length range |
1xxx,3xxx,5xxx ,8xxx aluminum coil/sheets | Mill finish | 0.1-1.0mm | Max 1700mm | -------------- |
PE pre painted aluminum coils | PE 8-25μ | 0.125-2.0mm | Max 1700mm | Coil & sheet |
PVDF pre painted aluminum sheet/coil | PVDF 8-25μ | 0.20-2.0mm | Max 1700mm | Coil & sheet |
Back side painting | PE 8-10μ | 0.125-2.0mm | Max 1700mm | Coil & sheet |
Marble & wooden Color painting | Finishing varnish 35μ | 0.2-2.0mm | Max 1700mm | Coil & sheet |
Mirror aluminum painting | Roller coating 8-16μ | 0.18-0.5mm | Max 1400mm | Coil & sheet |
Embossed stucco sheet& coil | stucco | 0.2-1.2mm | 350-1300mm | Coil & sheet |
Slitting coil | ----------- | 0.2-3.0mm | 21-1595mm | Coil & sheet |
Automatic roller coating line
The equipments and lines adopt Simens focus control system and Lenz frequency conversion system, With these system's stabilization, the equipments can be more easy control and precision in production.
Production facilities and processing range
Equipments | Quantity | Thickness range | Width range | Length range | Max loading weight |
Continuous casting rolling mill | 23 | 6.0-10.0mm | 1000-2000mm | ------------- | 15000kgs |
Cold rolling mill | 2 | 0.1-6.0mm | 900-1700mm | ------------- | 12000kgs |
High accuracy cold rolling line | 1 | 0.1-1.0mm | 650-1420mm | ------------- | OD 2000mm |
Annealer | 14x40T | ------------- | -------------- | ------------- | ------------- |
Coating line | 3 | 0.15-1.5mm | 600-1600mm | ------------- | 5000kgs |
Embossing line | 1 | 0.2-1.2mm | 350-1300mm | ------------- | 8500kgs |
Straightening line | 1 | 0.1-2.0mm | 600-1700mm | ------------- | 10000kgs |
Slitting line | 1 | 0.2-3.0mm | 21-1595mm | ------------- | 10000kgs |
Wave shearing line | 1 | 0.13-0.5mm | 550-1230mm | ------------- | 10000kgs |
Shearing line | 3 | 0.125-4.0mm | Max 1700mm | ------------- | 10000kgs |
