- Size: 1
- Place of Origin: shandong
- Brand Name: HF

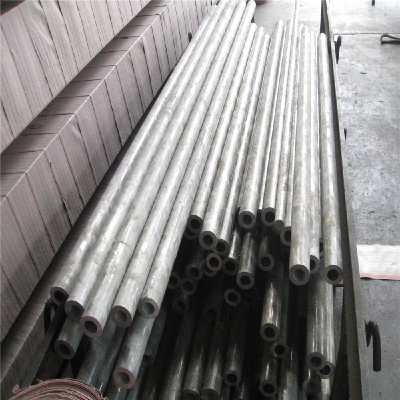

- Model Number: extruded 7075 T6 seamless aluminum tubes with diameter 16mm
- Weight: 1.000 kg
Quick Details
- Place of Origin: Shandong, China (Mainland)
- Grade: 7000 Series
- Shape: Round
- Surface Treatment: Mill Finished
- Outer Diameter: 16mm
- Length: 5800mm
- Thickness: 1.5mm
- Usage: industrial
- Hardness: 150
- Alloy Or Not: Is Alloy
- Temper: T3 - T8
- Al (Min): 90%
- Wall Thickness: 5mm
- Model Number: 7075
- Brand Name: HF
- alloy: 7075
- temper: T6 T651 H111
Packaging & Delivery
Packaging Details: | export standard packing |
---|---|
Delivery Detail: | 30 days |
"Jinan Huifeng aluminium Co., LTD", established from the year 2006, is a newly aluminum processing production enterprise, restructured from state-run enterprise , located in China's" Rose Town "—PingYing county of Jinan city territory.
CHEMICAL COMPOSITION OF EN AW-7075 [ Al Zn5.5MgCu ] | ||||||||||
SI | FE | CU | MN | MG | CR | NI | ZN | TI | ZR | AL |
0.4 | 0.50 | 1.2-2.0 | 0.30 | 2.1-2.9 | 0.18-0.28 | --- | 5.1-6.1 | 0.20 | --- | Remainder |
MECHANCIAL PROPERTY OF 7075 ALUMINUM TUBE/PIPE | |||||||
Temper | Out Diameter (mm) | Rm (Mpa) Yield Strength | Rp0.2 (Mpa) Tensile Strength | Elongation | |||
Min | Max | Min | Max | A % Min | A50mm % Min | ||
O H111 | ≤ 10 | ----- | 275 | --- | 165 | 10 | ---- |
T6, T6510 T6511 | ≤5 5 10 | 540 560 560 | ---- | 485 505 495 | ---- | 8 7 6 | 6 5 4 |
T73,T73510 T73511 | ≤5 5 10 | 470 485 475 | ---- | 400 420 405 | --- | 7 8 8 | 5 6 ----- |
T-Temper Main Designations
Alloys that are precipitation hardened gain their strength by solution heat treating (SHT) and ageing. Of the nine different tempers, T3, T6 and T7 are perhaps the most important.
Cooled from elevated temperature shaping process > Naturally aged to a substantially stable condition | |
Cooled from elevated temperature shaping process > Cold worked > Naturally aged | |
Solution heat treated > Cold worked > Naturally aged | |
Solution heat treated > Naturally aged | |
Cooled from high temperature shaping > Artificially aged | |
Solution heat treated > Artificially aged | |
Solution heat treated > Overaged (i.e. beyond maximum strength) | |
Solution heat treated > Cold worked > Artificially aged | |
Solution heat treated > Artificially aged > Cold worked |
